The Algebra of Complex Numbers Is Frobenius In Many Ways

Linear operators over a 2-dimensional vector space representing the algebra of complex numbers

Ref:

• http://arxiv.org/abs/1103.5113

  -permuted Frobenius Algebras

  Zbigniew Oziewicz (UNAM), Gregory Peter Wene (UTSA)

• http://mat.uab.es/~kock/TQFT.html

  Frobenius algebras and 2D topological quantum field theories

  Joachim Kock

• http://en.wikipedia.org/wiki/Frobenius_algebra

We need the Axiom LinearOperator? library.

)library CARTEN ARITY CMONAL CPROP CLOP CALEY

   CartesianTensor is now explicitly exposed in frame initial
   CartesianTensor will be automatically loaded when needed from
      /var/zope2/var/LatexWiki/CARTEN.NRLIB/CARTEN
   Arity is now explicitly exposed in frame initial
   Arity will be automatically loaded when needed from
      /var/zope2/var/LatexWiki/ARITY.NRLIB/ARITY
   ClosedMonoidal is now explicitly exposed in frame initial
   ClosedMonoidal will be automatically loaded when needed from
      /var/zope2/var/LatexWiki/CMONAL.NRLIB/CMONAL
   ClosedProp is now explicitly exposed in frame initial
   ClosedProp will be automatically loaded when needed from
      /var/zope2/var/LatexWiki/CPROP.NRLIB/CPROP
   ClosedLinearOperator is now explicitly exposed in frame initial
   ClosedLinearOperator will be automatically loaded when needed from
      /var/zope2/var/LatexWiki/CLOP.NRLIB/CLOP
   CaleyDickson is now explicitly exposed in frame initial
   CaleyDickson will be automatically loaded when needed from
      /var/zope2/var/LatexWiki/CALEY.NRLIB/CALEY

Use the following macros for convenient notation

-- summation
macro Σ(x,f,i)==reduce(+,[x*f.i for i in 1..#f])

-- scripts
macro sb == subscript

macro sp == superscript

𝐋 is the domain of 2-dimensional linear operators over the rational functions ℚ (Expression Integer), i.e. ratio of polynomials with integer coefficients.

dim:=2

(1)

macro ℂ == CaleyDickson

macro ℚ == Expression Integer

𝐋 := ClosedLinearOperator(OVAR ['1,'2], ℚ)

(2)

𝐞:List 𝐋      := basisOut()

(3)

𝐝:List 𝐋      := basisIn()

(4)

I:𝐋:=[1]   -- identity for composition

(5)

X:𝐋:=[2,1] -- twist

(6)

V:𝐋:=ev(1) -- evalutation

(7)

Λ:𝐋:=co(1) -- co-evalutation

(8)

Now generate structure constants for Quaternion Algebra

The basis consists of the real and imaginary units. We use quaternion multiplication to form the "multiplication table" as a matrix. Then the structure constants can be obtained by dividing each matrix entry by the list of basis vectors.

Split-complex can be specified by Caley-Dickson parameter (q0 = -1)

--q:=1  -- split-complex
QQ := ℂ(ℚ,'i,q);

Basis: Each B.i is a quaternion number

B:List QQ := map(x +-> hyper x,1$SQMATRIX(dim,ℚ)::List List ℚ)

(9)

-- Multiplication table:
M:Matrix QQ := matrix [[ B.i*B.j for i in 1..#B] for j in 1..#B]

(10)

-- Function to divide the matrix entries by a basis element
S(y) == map(x +-> real(x/y),M)

-- The result is a nested list
ѕ :=map(S,B)::List List List ℚ

Compiling function S with type CaleyDickson(Expression(Integer),i,q)
       -> Matrix(Expression(Integer))

(11)

-- structure constants form a tensor operator
Y := Σ(Σ(Σ(ѕ(i)(k)(j), 𝐞,i), 𝐝,j), 𝐝,k)

(12)

matrix [[ (𝐞.i,𝐞.j)/Y for i in 1..#𝐞] for j in 1..#𝐞]

(13)

Multiplication of arbitrary quaternions and

a:=Σ(sb('a,[i]), 𝐞,i)

(14)

b:=Σ(sb('b,[i]), 𝐞,i)

(15)

(a*b)/Y

(16)

Multiplication of complex numbers is associative

test(
  ( I Y ) / _
  (  Y  ) = _
  ( Y I ) / _
  (  Y  ) )

(17)

Cartan-Killing Trace Form

Ũ:=
  (  Y Λ  ) / _
  (   Y I ) / _
       V

(18)

A scalar product is denoted by the (2,0)-tensor

U:=Σ(Σ(sp('u,[i,j]), 𝐝,i), 𝐝,j)

(19)

Definition 1

We say that the scalar product is associative if the tensor equation holds:

    Y   =   Y
     U     U

In other words, if the (3,0)-tensor:

(20)

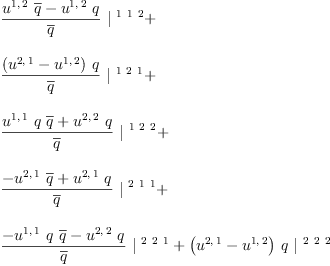

Using the LinearOperator? domain in Axiom and some carefully chosen symbols we can easily enter expressions that are both readable and interpreted by Axiom as "graphical calculus" diagrams describing complex products and compositions of linear operators.

ω:𝐋 :=
     (    Y I    ) /
           U       -
     (    I Y    ) /
           U

(21)

Definition 2

An algebra with a non-degenerate associative scalar product is called a [Frobenius Algebra]?.

We may consider the problem where multiplication Y is given, and look for all associative scalar products

This problem can be solved using linear algebra.

)expose MCALCFN

   MultiVariableCalculusFunctions is now explicitly exposed in frame
      initial
J := jacobian(ravel ω,concat map(variables,ravel U)::List Symbol);

u := transpose matrix [concat map(variables,ravel U)::List Symbol];

J::OutputForm * u::OutputForm = 0

(22)

nrows(J),ncols(J)

(23)

The matrix J transforms the coefficients of the tensor into coefficients of the tensor . We are looking for the general linear family of tensors such that J transforms into for any such .

If the null space of the J matrix is not empty we can use the basis to find all non-trivial solutions for U:

Ñ:=nullSpace(J)

(24)

ℰ:=map((x,y)+->x=y, concat
       map(variables,ravel U), entries Σ(sb('p,[i]), Ñ,i) )

(25)

This defines a family of pre-Frobenius algebras:

zero? eval(ω,ℰ)

(26)

In two dimensions the pairing is necessarily symmetric!

Ų:𝐋 := eval(U,ℰ)

(27)

matrix [[ (𝐞.i 𝐞.j)/Ų for i in 1..#𝐞] for j in 1..#𝐞]

(28)

This is the most general form of the "dot product" of two complex numbers

(a*b)/Ų

(29)

(a*a)/Ų

(30)

The scalar product must be non-degenerate:

Ů:=determinant [[ retract((𝐞.i * 𝐞.j)/Ų) for j in 1..#𝐞] for i in 1..#𝐞]

(31)

factor Ů

(32)

Definition 3

Co-pairing

Solve the [Snake Relation]? as a system of linear equations.

Ω:𝐋:=Σ(Σ(sb('u,[i,j]), 𝐞,i), 𝐞,j)

(33)

s1:=(I*Ω)/(Ų*I);

s2:=(Ω*I)/(I*Ų);

equate(eq)==map((x,y)+->(x=y),ravel lhs eq, ravel rhs eq);

snake:=solve(concat(equate(s1=I),equate(s2=I)), _
             concat map(variables,ravel Ω));

Compiling function equate with type Equation(ClosedLinearOperator(
      OrderedVariableList([1,2]),Expression(Integer))) -> List(Equation
      (Expression(Integer)))

if #snake ~= 1 then error "no solution"

Ω:=eval(Ω,snake(1))

(34)

matrix [[ Ω/(𝐝.i*𝐝.j) for i in 1..#𝐝] for j in 1..#𝐝]

(35)

Check "dimension" and the snake relations.

Θ:𝐋:=
       Ω    /
       X    /
       Ų

(36)

test
    (    I Ω     )  /
    (     Ų I    )  =  I

(37)

test
    (     Ω I    )  /
    (    I Ų     )  =  I

(38)

Definition 4

Co-algebra

Compute the "three-point" function and use it to define co-multiplication.

W:=
  (Y,I) /
    Ų

(39)

λ:=
  ( Ω,I,Ω ) /
  (I, W ,I)

(40)

test
     (    I Ω     )  /
     (     Y I    )  =  λ

(41)

test
     (     Ω I    )  /
     (    I Y     )  =  λ

(42)

Co-associativity

test(
  (  λ  ) / _
  ( I λ ) = _
  (  λ  ) / _
  ( λ I ) )

(43)

Frobenius Condition

H :=
         Y    /
         λ

(44)

test
     (   λ I   )  /
     (  I Y    )  =  H

(45)

test
     (   I λ   )  /
     (    Y I  )  =  H

(46)

Bi-algebra conditions

ΦΦ:=         _
  (  λ λ  ) / _
  ( I X I ) / _
  (  Y Y  );

test( H/H = ΦΦ )

(47)

The Cartan Killing form is a bi-algebra

b:=solve( equate(ΦΦ=H), [sb('p,[i]) for i in 1..#Ñ] )

(48)

test(eval(Ų, b.1)=Ũ)

(49)

i = Unit of the algebra

i:=𝐞.1

(50)

test
         i     /
         λ     =    Ω

(51)

Handle

Φ:𝐋 :=
         λ     /
         X     /
         Y

(52)

Definition 5

  i
  U


j:𝐋:=
    (   i I   ) /
         Ų

(53)

i / j

(54)

Y=U
j

test
        Y     /
        j     =  Ų

(55)

For example:

ex1:=[q[0]=1,p[1]=0,p[2]=1]

(56)

Ų0:𝐋  :=eval(Ų,ex1)

(57)

Ω0:𝐋  :=eval(Ω,ex1)$𝐋

(58)

λ0:𝐋  :=eval(λ,ex1)$𝐋

(59)

Φ0:𝐋 :=eval(Φ,ex1)$𝐋

(60)
